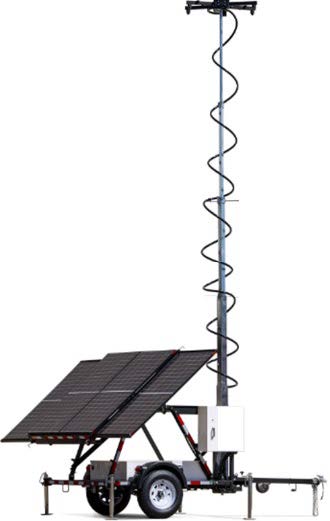

SOLAR SURVEILLANCE TRAILER



The Solar Surveillance System makes your community safer with quick deployment and remote monitoring and control. This system includes one or two cameras with onboard digital recording and many options to suit a wide variety of applications.

This system includes all the technology you expect, integrated in a portable solar-based platform.

This system includes full-featured PTZ cameras, a battery- and solar-based power system, an expandable electronics bay and more. The day/night cameras capture high-resolution video, which can be accessed locally or remotely. Video can be viewed in real time or recorded and stored with the onboard NVR. For increased flexibility, choose from a wide assortment of additional options.

Power is provided by batteries, which are charged by the solar-based charging system. In a typical deployment with sufficient sunlight, the system can run continuously and independently year-round.



Features
•Multiple PTZ dome cameras
•20-foot vertical tower
•Onboard solid-state NVR with monitor
•High-speed LTE wireless access
•Lots of optional add-ons


Camera System
•One or two outdoor IP-network cameras
•Cameras are day/night PTZ dome style with 360° rotation
•Axis, Vicon, Samsung and other cameras available
•Onboard digital recording to solid-state NVR
•Local control with 10.2-inch color touchscreen monitor
•20-foot telescoping vertical tower rotates nearly 360 degrees
•Cameras and add-on devices can operate independently or simultaneously

Communications
• High-speed 4G LTE/3G cellular modem* with built-in GPS
• Multiple antenna types for the signal power and distance you need
*REQUIRES CELLULAR PLAN, SEVERAL PLANS AVAILABLE


Power System
• Battery powered
• Maintenance-free sealed batteries
• Solar-based charging system charges batteries automatically without intervention
• Solar array tilts from horizontal to nearly 90° vertical for optimal sun exposure
• Charging system shuts down when batteries are fully charged, preventing damage
• Unique system allows battery charging with solar panels or commercial power

Tamper Resistance
• Electronics housed in locking NEMA-rated enclosure
• Nycoil cable protection
• Heavy-duty secure battery box
• Drawbar is removable for shipping and for added theft protection
• Tie-downs can be anchored to ground or other equipment
